Using ambforecast

This repository contains the open-source forecasting code and simple examples showing how to use its main functions.

Making the code open supports transparency, reproducibility, and reuse. It allows others to understand how the forecasts are produced, test and improve the methods, and adapt them for other ambulance services or similar forecasting problems.

The full analysis using real ambulance service data is carried out in the separate private ambforecast-private repository. Private analysis outputs are not included here.

Imports

import numpy as np
import pandas as pd

from ambforecast.arima import ARIMAParams, arima
from ambforecast.ensemble import ensemble
from ambforecast.errors import calculate_errors
from ambforecast.forecast import (
    run_single_forecast, run_forecasts, run_cross_validation
)
from ambforecast.plot import plot_forecast, plot_cross_validation
from ambforecast.preprocessing import (
    prepare_historic, prepare_holidays, prepare_temp,
    validate_historic, validate_holidays, validate_temp, interpolate_temp
)
from ambforecast.prophet import ProphetParams, prophet, ProphetRegressor
from ambforecast.naive import SNaiveParams, snaive
from ambforecast.splits import train_test_split

Synthetic data

Code
rng = np.random.default_rng(42)

dates = pd.date_range("2022-01-01", "2024-12-31", freq="D")
areas = ["Cornwall", "Devon", "Somerset"]
metrics = ["Calls", "Incidents", "Responses"]


# Synthetic daily temperature data, one observation per area per day.
raw_temp = pd.DataFrame(
    [
        {
            "OB_END_TIME": date + pd.Timedelta(hours=12),
            "ID_TYPE": "WMO",
            "ID": f"{area[:3].upper()}_001",
            "OB_HOUR_COUNT": 12,
            "VERSION_NUM": 1,
            "MET_DOMAIN_NAME": "SYNTHETIC_UK",
            "SRC_ID": f"SYN_{area[:3].upper()}",
            "MAX_AIR_TEMP": round(12 + 8 * np.sin(2 * np.pi * date.dayofyear / 365) + rng.normal(0, 2), 1),
            "MIN_AIR_TEMP": round(5 + 6 * np.sin(2 * np.pi * date.dayofyear / 365) + rng.normal(0, 2), 1),
            "ICB": area,
        }
        for date in dates
        for area in areas
    ]
)


# A few simple holidays, repeated for every area.
holiday_dates = {
    "new_year": "01-01",
    "christmas": "12-25",
    "boxing_day": "12-26",
}
raw_holidays = pd.DataFrame(
    [
        {
            "ds": pd.Timestamp(f"{year}-{month_day}"),
            "holiday": holiday,
            "lower_window": 0,
            "upper_window": 1,
            "county": area,
        }
        for year in range(2022, 2025)
        for holiday, month_day in holiday_dates.items()
        for area in areas + ["Trust"]
    ]
)


# Synthetic daily demand. It has weekly seasonality, annual seasonality,
# a small weather effect, a holiday effect, and random noise.
daily_temp = (
    raw_temp.assign(ds=raw_temp["OB_END_TIME"].dt.normalize())
    .groupby(["ds", "ICB"], as_index=False)["MAX_AIR_TEMP"]
    .mean()
)

raw_historic = []
for metric, baseline in {"Calls": 100, "Incidents": 65, "Responses": 55}.items():
    for area, multiplier in {"Cornwall": 0.8, "Devon": 1.0, "Somerset": 0.6}.items():
        area_temp = daily_temp[daily_temp["ICB"] == area].set_index("ds")
        for date in dates:
            is_holiday = ((raw_holidays["ds"] == date) & (raw_holidays["county"] == area)).any()
            weekly = [1.0, 0.95, 0.95, 0.98, 1.05, 1.12, 1.08][date.dayofweek]
            yearly = 1 + 0.1 * np.sin(2 * np.pi * date.dayofyear / 365)
            heat = max(area_temp.loc[date, "MAX_AIR_TEMP"] - 20, 0) * 0.03
            y = baseline * multiplier * weekly * yearly * (1 + heat)
            y *= 1.1 if is_holiday else 1
            raw_historic.append(
                {"ds": date, "currency": metric, "ora": area, "y": round(max(0, y + rng.normal(0, 8)))}
            )

raw_historic = pd.DataFrame(raw_historic)
display(raw_historic.head())
ds currency ora y
0 2022-01-01 Calls Cornwall 103
1 2022-01-02 Calls Cornwall 73
2 2022-01-03 Calls Cornwall 68
3 2022-01-04 Calls Cornwall 80
4 2022-01-05 Calls Cornwall 61
display(raw_holidays.head())
ds holiday lower_window upper_window county
0 2022-01-01 new_year 0 1 Cornwall
1 2022-01-01 new_year 0 1 Devon
2 2022-01-01 new_year 0 1 Somerset
3 2022-01-01 new_year 0 1 Trust
4 2022-12-25 christmas 0 1 Cornwall
display(raw_temp.head())
OB_END_TIME ID_TYPE ID OB_HOUR_COUNT VERSION_NUM MET_DOMAIN_NAME SRC_ID MAX_AIR_TEMP MIN_AIR_TEMP ICB
0 2022-01-01 12:00:00 WMO COR_001 12 1 SYNTHETIC_UK SYN_COR 12.7 3.0 Cornwall
1 2022-01-01 12:00:00 WMO DEV_001 12 1 SYNTHETIC_UK SYN_DEV 13.6 7.0 Devon
2 2022-01-01 12:00:00 WMO SOM_001 12 1 SYNTHETIC_UK SYN_SOM 8.2 2.5 Somerset
3 2022-01-02 12:00:00 WMO COR_001 12 1 SYNTHETIC_UK SYN_COR 12.5 4.6 Cornwall
4 2022-01-02 12:00:00 WMO DEV_001 12 1 SYNTHETIC_UK SYN_DEV 12.2 3.5 Devon

Pre-processing

df_historic = prepare_historic(data=raw_historic)
display(df_historic.head())

validate_historic(data=df_historic)
ds metric area y
0 2022-01-01 Calls Cornwall 103
3288 2022-01-01 Incidents Cornwall 69
6576 2022-01-01 Responses Cornwall 48
1096 2022-01-01 Calls Devon 132
4384 2022-01-01 Incidents Devon 59
✅ No problems identified in historic data.
df_holidays = prepare_holidays(raw_holidays)
display(df_holidays.head())

validate_holidays(df_holidays)
ds holiday lower_window upper_window area
0 2022-01-01 new_year 0 1 Cornwall
1 2022-01-01 new_year 0 1 Devon
2 2022-01-01 new_year 0 1 Somerset
3 2022-01-01 new_year 0 1 Trust
4 2022-12-25 christmas 0 1 Cornwall
✅ No problems identified in holiday data.
temp = prepare_temp(raw_temp)
temp = interpolate_temp(temp)
display(temp.head())

validate_temp(temp)
ds area MIN_AIR_TEMP MAX_AIR_TEMP
0 2022-01-01 Cornwall 3.0 12.7
1 2022-01-01 Devon 7.0 13.6
2 2022-01-01 Somerset 2.5 8.2
3 2022-01-01 Trust 2.5 13.6
4 2022-01-02 Cornwall 4.6 12.5
✅ No problems identified in air temperature data.

Forecasting options

Running the forecast

The package provides three functions for running forecasts:

run_single_forecast() and run_forecasts() can be used in two ways:

  • Forecast future demand: provide horizon which is the number of days to forecast beyond the final date in the provided data.
  • Evaluate against held-out demand: split the historic data into train and test datasets using train_test_split(), then provide test so forecast dates are taken from the test dataset, and the forecast can be compared with observed values.

run_forecasts() and run_cross_validation() can run sequentially with cores=1 or in parallel by setting cores to a larger number of -1 to use all available cores.

Models

Each forecasting model is implemented in its own module with:

  • A dataclass for storing that model’s settings.
  • A function for fitting the model and generating forecasts.

Dataclasses are used as:

  • Group model settings together in one named object, making experiments easy to read and reproduce.
  • Avoid large function calls containing many settings - just pass the object.
  • Document the available settings. Dataclass docstrings can include notes on what each parameter means and how it affects the model.

Visualisation and evaluation

A few different functions are provided in the plots module for visualising the forecast results.

To evaluate forecast accuracy, use calculate_errors().

Examples

These are a few examples of how to run forecasts. For internal team members, comprehensive use of the functions can be view in the ambforecast-private repository.

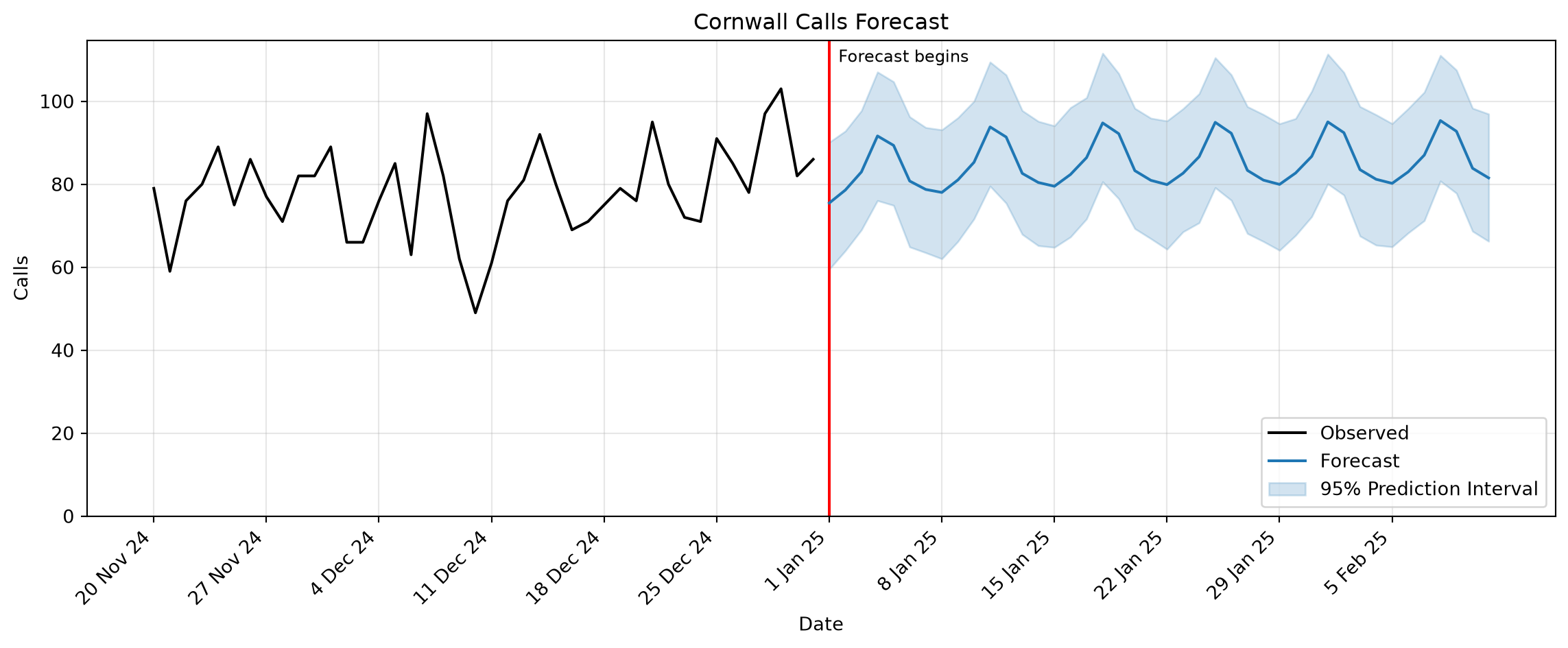

Example 1: Single Prophet forecast of future

params = ProphetParams(
    holidays=df_holidays
)

forecast = run_single_forecast(
    forecast_function=prophet,
    train=df_historic,
    params=params,
    metric="Calls",
    area="Cornwall",
    horizon=42
)

plot_forecast(
    train=df_historic,
    forecast=forecast
)

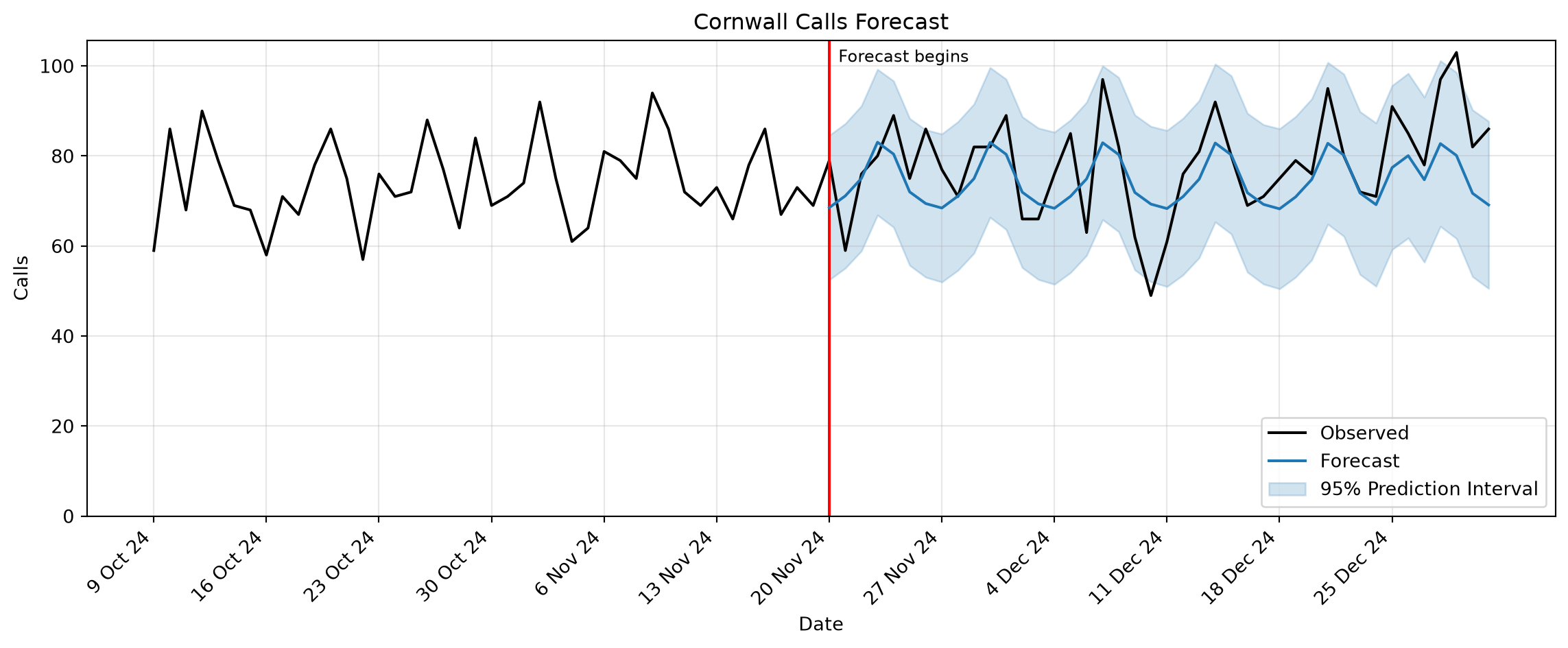

Example 2: ARIMA forecasts for all areas with hold-out test set

train, test = train_test_split(data=df_historic, horizon=42)

params = ARIMAParams(
    holidays=df_holidays,
    order=(1, 1, 3),
    seasonal_order=(1, 0, 1, 7)
)

forecast = run_forecasts(
    forecast_function=arima,
    train=train,
    params=params,
    test=test,
    cores=1
)

plot_forecast(
    train=train,
    forecast=forecast,
    test=test,
    metric="Calls",
    area="Cornwall"
)

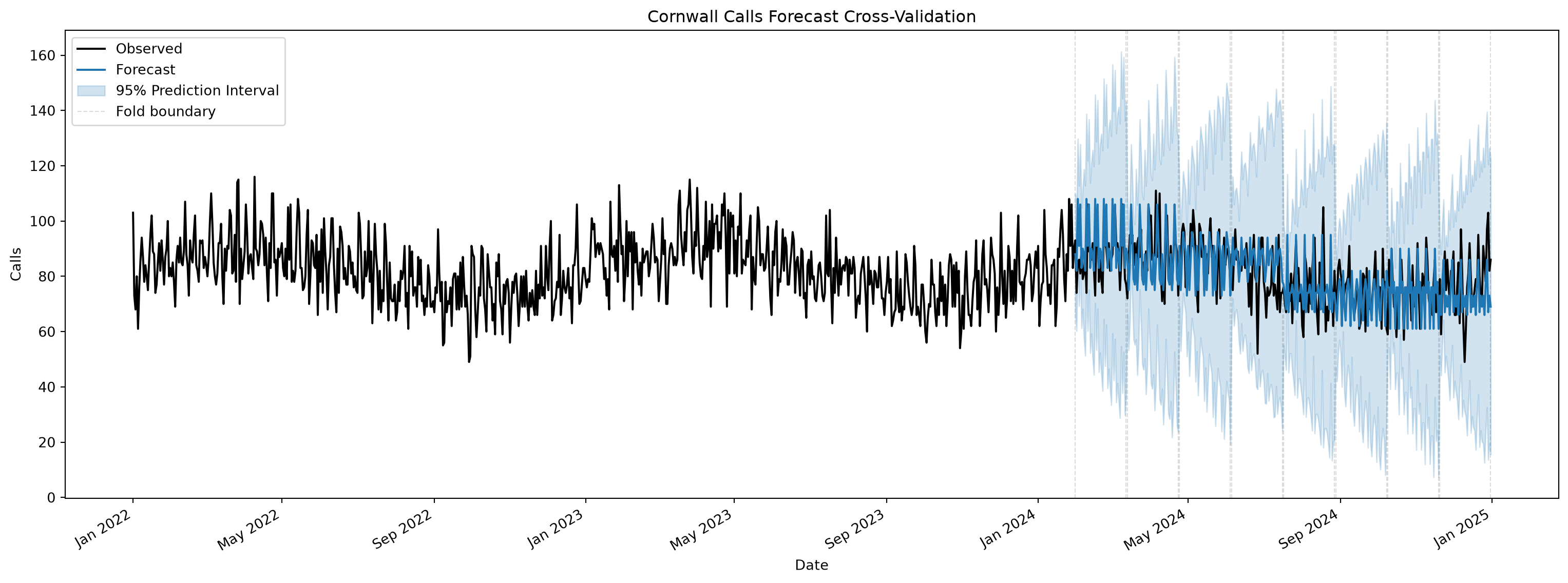

Example 3: Seasonal-naive cross-validation

params = SNaiveParams()

forecast = run_cross_validation(
    forecast_function=snaive,
    historic=df_historic,
    params=params,
    horizon=42,
    step=42,
    min_train=365*2,
    cores=1
)

plot_cross_validation(
    historic=df_historic,
    forecast=forecast,
    metric="Calls",
    area="Cornwall"
)
Running 9 series across 8 folds (72 forecasts) using 1 worker(s).
Cross-validation completed in 0 minute(s) and 1 second(s).

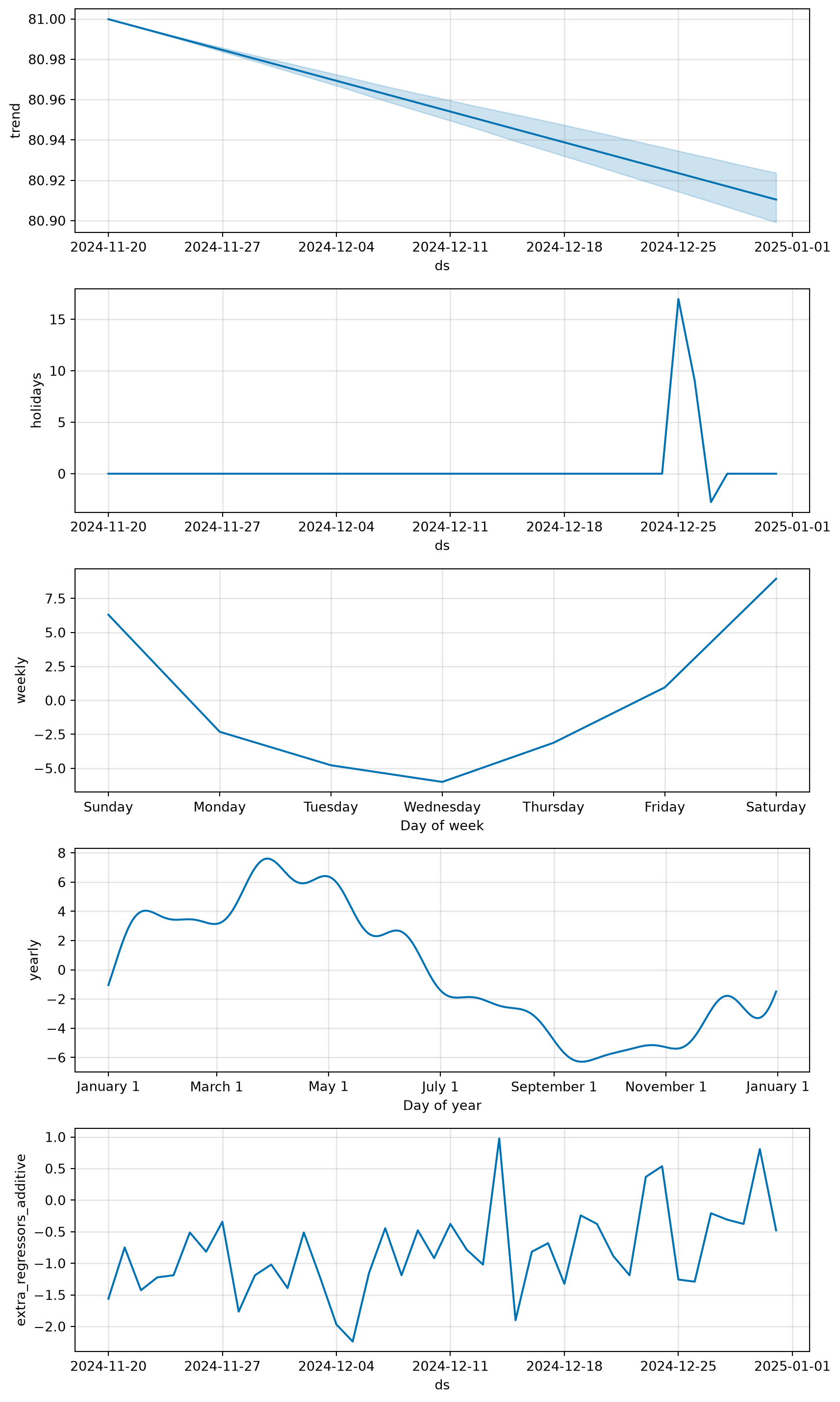

Example 4: Prophet with additional regressors

params = ProphetParams(
    holidays=df_holidays,
    regressors=(
        ProphetRegressor(
            name="MAX_AIR_TEMP",
            data=temp
        ),
    ),
    plot_components=True
)

forecast = run_single_forecast(
    forecast_function=prophet,
    train=train,
    params=params,
    metric="Calls",
    area="Cornwall",
    test=test
)

calculate_errors(forecast=forecast)
metric area forecast_start_date horizon rmse mase smape coverage
0 Calls Cornwall 2024-11-20 7 8.779801 0.715186 9.513821 1.000000
1 Calls Cornwall 2024-11-20 14 7.507202 0.632459 8.396045 1.000000
2 Calls Cornwall 2024-11-20 21 9.909213 0.810898 11.103226 0.857143
3 Calls Cornwall 2024-11-20 28 8.973510 0.711588 9.738254 0.892857
4 Calls Cornwall 2024-11-20 35 8.311624 0.654961 8.867668 0.914286
5 Calls Cornwall 2024-11-20 42 8.479519 0.668057 8.784701 0.904762
